FFC-60 Breakout Board

IC Breakout, LLC

$24.95
SKU: ICB00215

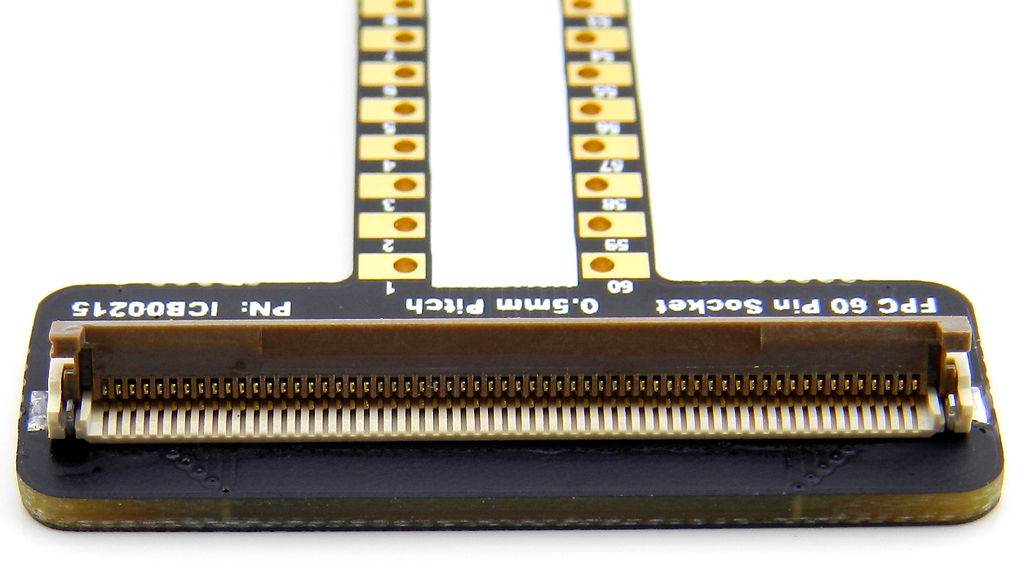

The FFC-60 breakout board is for Flexible Printed Circuit or Flexible Flat Cable (FPC/FFC) type connections.  It comes with the FFC connector already soldered to the board.  It's designed to maximize the breadboard space when using it for prototyping. We carry a 60 position flat flex cable that is compatible with the FFC connector included in the FFC-60 breakout board (Part number ICB94005).

TIP: Click HERE and print off the Dimension Document, that includes a 1:1 Scale Image of the board to ensure that it will be a good fit for your project!

Technical Details

Footprint Dimensions

Body (mm):

n/a

Pitch (mm):

n/a

Thermal Pad (mm):

n/a

Breakout Board Dimensions

Board Dimensions (mil):

1420 x 3448.53

Board Thickness (mil):

62

Through-Hole Spacing (mil):

300 mil (X-axis)

100 mil (Y-axis)

Breakout Board Specifications

Board Layers:

6

Finish:

Immersion Gold

Copper:

1 oz

Traces (mil):

10

Trace Lengths (mil):

<3200

Pin/Through-Hole Count:

60

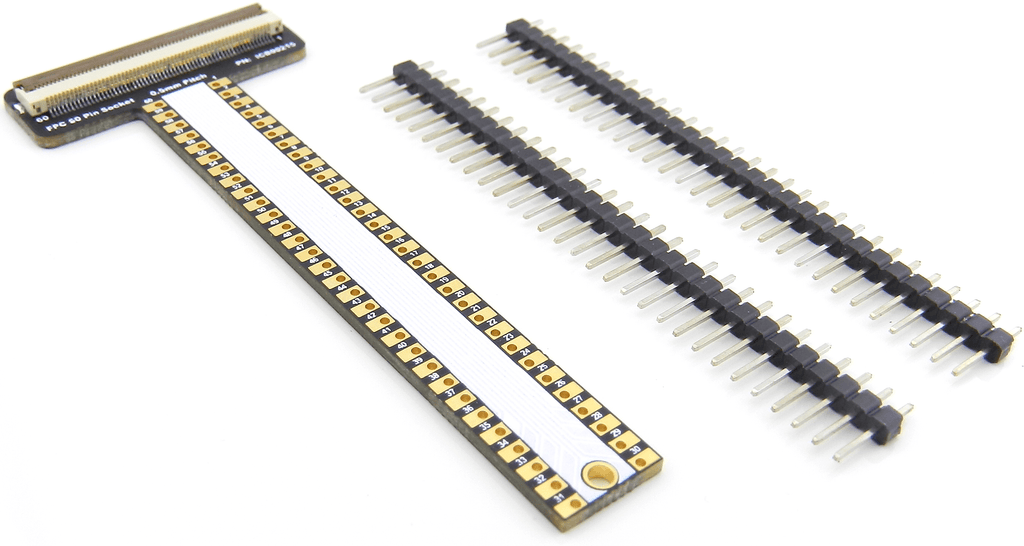

What's Included?

Parts Installed on Board:

FFC-60 Connector

Parts Included

(but not installed):

60 PIN Break Away Header (Straight)

Additional Features

    • Easily identifiable PIN 1 indicator and PIN numbers
    • White silk “Label Pads” allow you to label the pins for quick reference
    • Extended through-hole pads make for an easy connection point for surface mount parts
    • Breadboard friendly pin spacing
    • All boards have been E-tested for failures and are RoHS compliant
…More details on our additional features can be found HERE



Datasheet (PDF)
