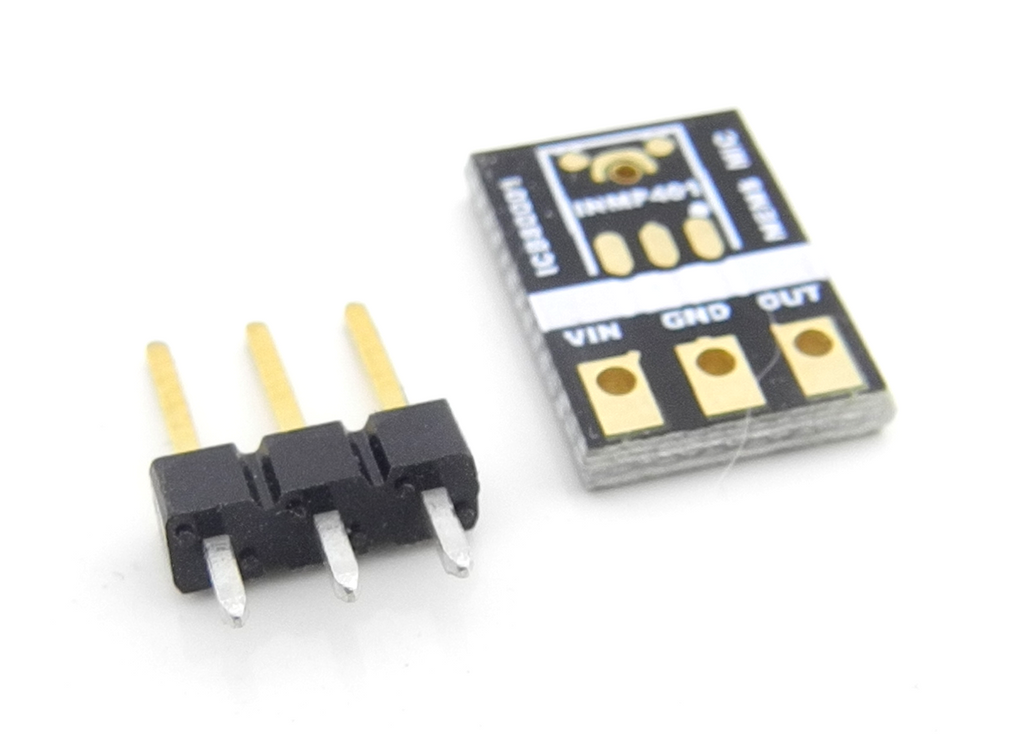

MEMS Microphone Breakout Board (INMP401)
This is a breakout board that was designed to be a DIP adapter specifically for InvenSense parts, INMP401 or ADMP401.
Technical Details

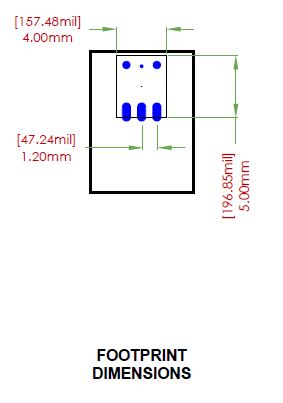

Footprint Dimensions |
|
|
Body (mm): |
4 x 5 |
|
Pitch (mm): |
1.20 |
|
Thermal Pad (mm): |
n/a |
Breakout Board Dimensions |
|
|
Board Dimensions (mil): |
320 x 440 |
|
Board Thickness (mil): |
62 |
|
Through-Hole Spacing (mil): |
100 mil (X-axis) |
|
n/a (Y-axis) |
|
Breakout Board Specifications |
|
|
Board Layers: |
2 |
|
Finish: |
Immersion Gold |
|
Copper: |
1 oz |
|
Traces (mil) |
30 |
|
Trace Lengths (mil): |
<50 |
|
Pin/Through-Hole Count: |
3 |
What's Included?
|
Parts Installed on Board: |
None |
|
Parts Included (but not installed): |
3 PIN Break Away Header (Straight) |
Additional Features
- Easily identifiable PIN 1 indicator and PIN numbers
- White silk “Label Pads” allow you to label the pins for quick reference
- Extended through-hole pads make for an easy connection point for surface mount parts
- Breadboard friendly pin spacing
- All boards have been E-tested for failures and are RoHS compliant
…More details on our additional features can be found HERE
