Micro SD Breakout Board

Micro SD Breakout Board
Micro SD Breakout Board Micro SD Breakout Board Micro SD Breakout Board Micro SD Breakout Board Micro SD Breakout Board

IC Breakout, LLC

$9.95
SKU: ICB00415

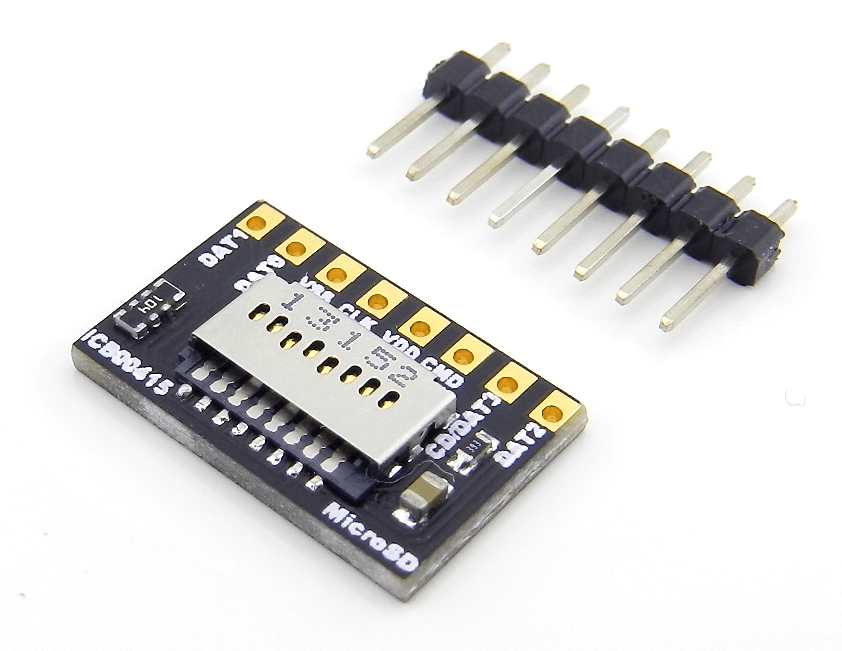

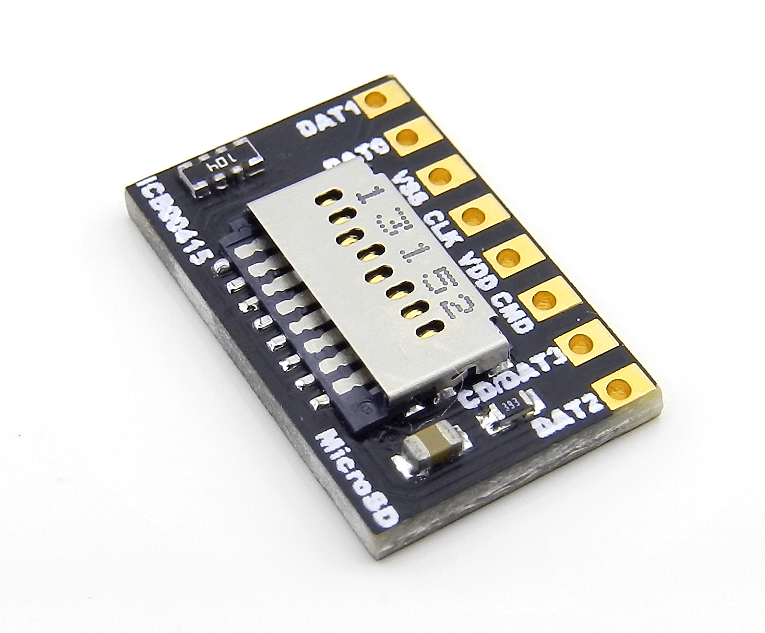

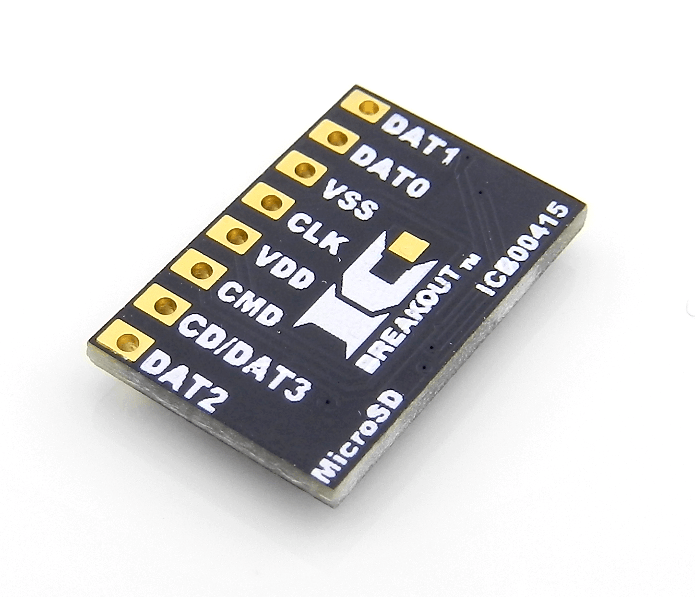

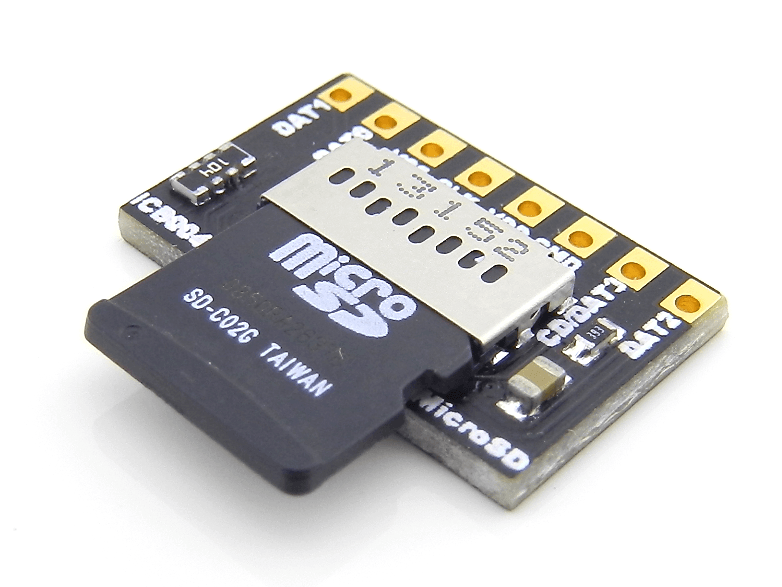

The MicroSD breakout board is a DIP adapter for the Micro SD connector.  This board has all of the support components to use a Micro SD card.  You don't need to add any pull-up resistors or a power decoupling capacitor, it's already on the board for you! Also, the SD card hangs over for easy removal and insertion.

Technical Details

Footprint Dimensions

Body (mm):

n/a

Pitch (mm):

n/a

Thermal Pad (mm):

n/a

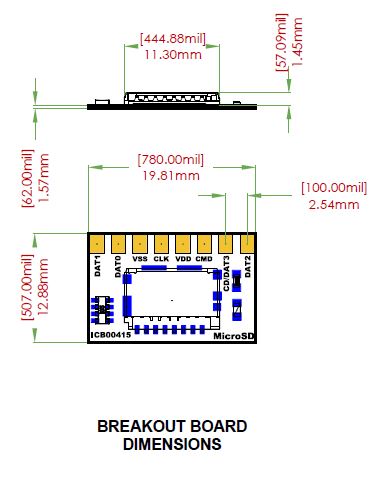

Breakout Board Dimensions

Board Dimensions (mil):

780 x 507

Board Thickness (mil):

62

Through-Hole Spacing (mil):

100 mil (X-axis)

n/a (Y-axis)
Breakout Board Specifications

Board Layers:

2

Finish:

Immersion Gold

Copper:

1 oz

Traces (mil):

10

Trace Lengths (mil):

<150

Pin/Through-Hole Count:

8

What's Included?

Parts Installed on Board:

MicroSD connector,

100k resistor array,

.1uF capacitor,

100K resistor

Parts Included

(but not installed):

8 PIN Break Away Header (Straight)

Additional Features

    • Easily identifiable PIN 1 indicator and PIN numbers
    • White silk “Label Pads” allow you to label the pins for quick reference
    • Extended through-hole pads make for an easy connection point for surface mount parts
    • Breadboard friendly pin spacing
    • All boards have been E-tested for failures and are RoHS compliant
…More details on our additional features can be found HERE

Documentation

(includes a 1:1 Scale Image of the board to ensure that it will be a good fit for your project!)
