QFN-32 Breakout Board (5.1x5.1mm, 0.5mm)

IC Breakout, LLC

$6.95
SKU: ICB50002

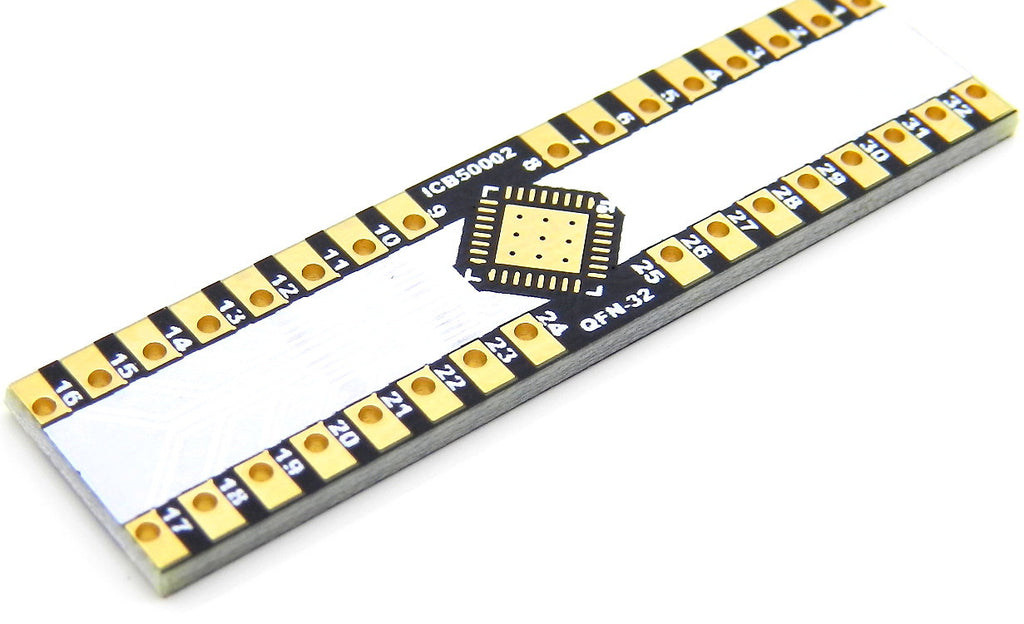

The QFN-32 breakout board is designed for the QFN-32 type SMD packages.  Some QFN types you may be able to use with this board are QFN, QFN-TEP, DQFN, TQFN, VQFN, HUQFN, HVQFN, HWQFN, HXQFN, XQFN.  Make sure to check measurements of your part first (pitch and body are the most important to know).
Designed to fit standard breadboards for testing small IC's and prototyping projects.QFN-32_5.1x5.1_0.5_board
Manufacturer: IC Breakout, LLC
Manufacturer Part Number: ICB50002
Parts on board: None
Parts included: 32-PIN Header (break-away)

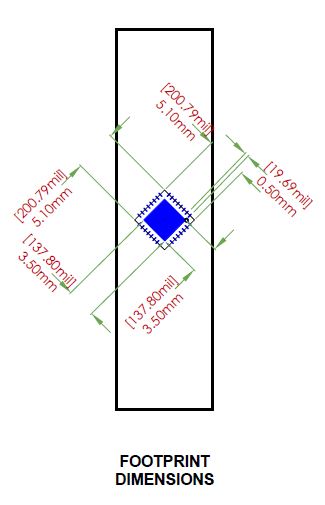

Key Specifications/Technical Details

  • Pitch - 0.5 mm
  • Body - 5.1 mm x 5.1 mm
  • Thermal Pad - 3.5 mm x 3.5 mm
  • 100 mil (0.24 mm) standard through holes
  • 300 mil spacing between through holes
  • 10 mil traces
  • All trace lengths, under 800 mil
  • 1 oz copper
  • Finish: Immersion Gold
  • E-tested  PCB for failures

Features

  • White silk "Label Pad" area
  • Pin 1 designator
  • Pin numbering on each through hole
  • Extended through hole pads



QFN-32_5.1x5.1_0.5_IC
