TSSOP-20 Breakout Board (6.5x4.4mm, 0.65mm)

IC Breakout, LLC

$3.49
SKU: ICB00370

The TSSOP-20 breakout board was designed for the TSSOP-20 type SMD packages.  You may be able to use with MSOP,  SOIC-20 to 4, type surface mount IC's (check measurements first). Designed to fit standard breadboards for testing small IC's and prototyping projects.



Manufacturer: IC Breakout, LLCTSSOP-20_measurement
Manufacturer Part Number: ICB00370
Parts on board: None

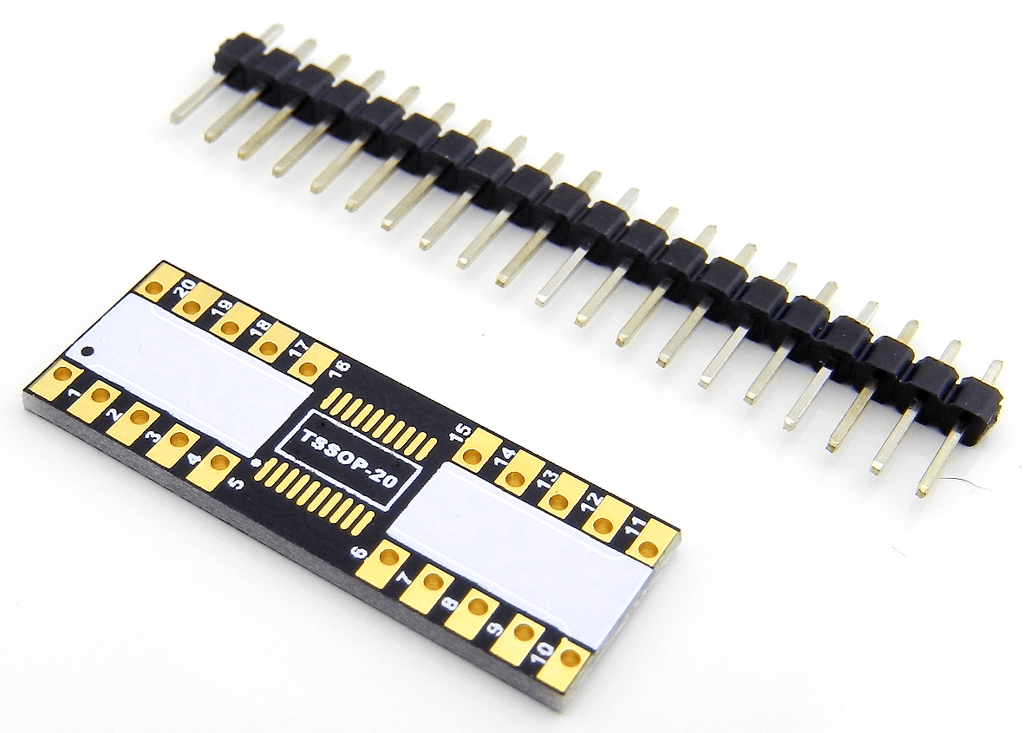

Parts included: 20-PIN Header (break-away)

Key Specifications/Technical Details

  • Pitch - 0.65 mm
  • Body - 6.5 mm x 4.4 mm
  • 100 mil (0.24 mm) standard through holes
  • 300 mil spacing between through holes
  • 10 mil traces
  • All trace lengths, under 600 mil
  • 1 oz copper
  • Finish: Immersion Gold
  • E-tested  PCB for failures

Features

  • White silk "label pad" area
  • Pin 1 designator
  • Pin number for each pin
  • Extended through hole pads
